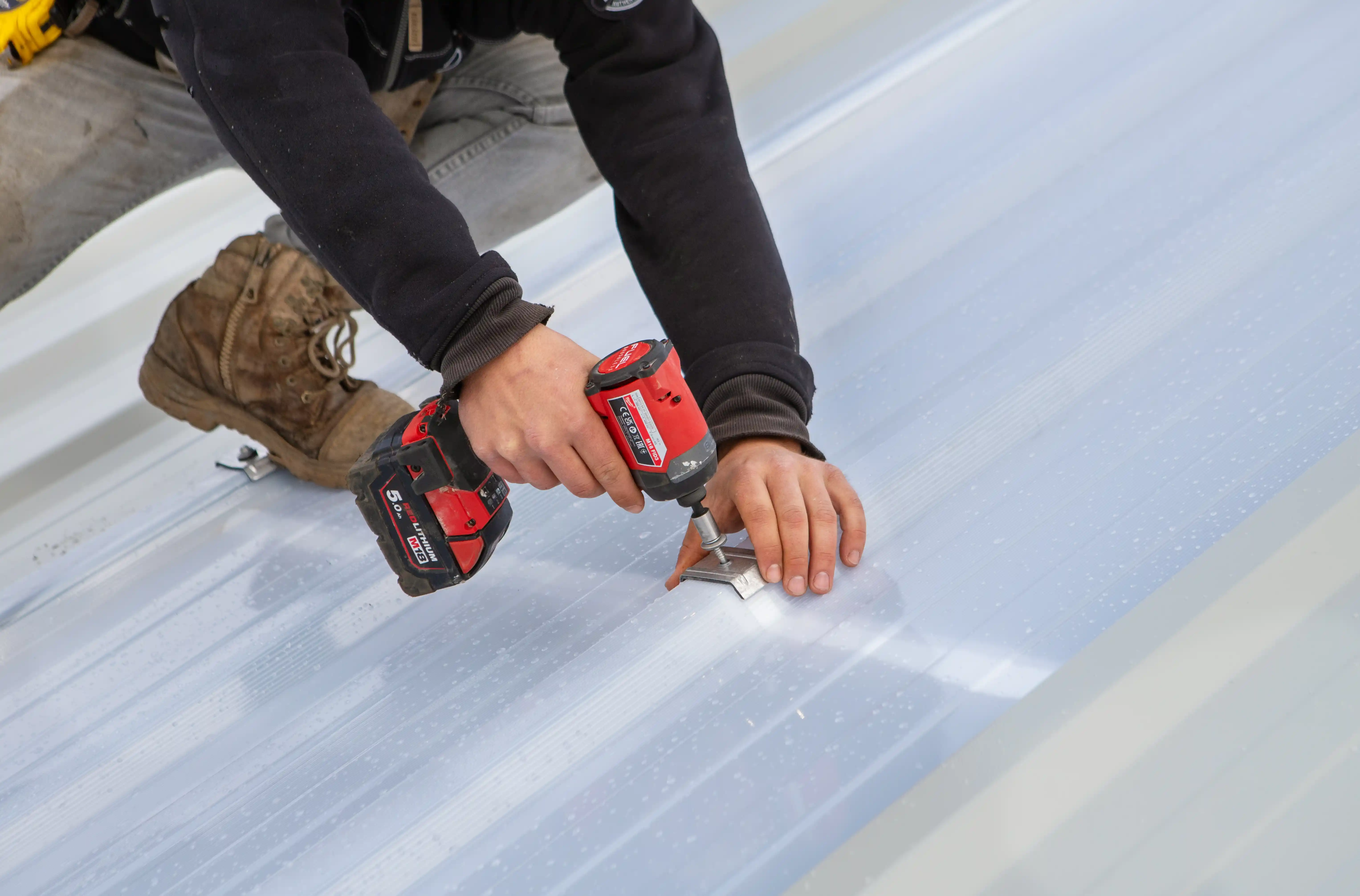

Assembly instructions
The 1,250mm wide roofing sheets with a rigid X-structure ensure reliable installation across large spans in gable roof ridges and continuous skylights, combining impact resistance and ease of installation to create a durable building envelope.
Optical Precision
The 7-layered X-structure refracts and diffuses daylight deep into the space, creating uniform brightness without harsh shadows, thereby enhancing the architectural quality and providing a calming lighting atmosphere in non-residential buildings.
Natural light experience
With a light transmission of up to 57% in the transparent version, this sheet combines high quality thermal insulation with a true-to-life reproduction of the colour spectrum. Natural light ensures a vibrant and stimulating working environment in which materials and textures retain their true colour rendering (CRI) and visual identity.
Eigenschappen
Width
1.250 mm
Structure
X-structure with 7 layers
Length
6,000mm (standard)
Weight
Approx. 3,7 kg/m²
U-value
1.2 W/m²·K
Operating temperature
-40 – 120° C
Linear coefficient of thermal expansion
0.065mm/m·K
Fire class
B – s1, d0
UV resistance
Standard single-sided
Bend radius
Not bendable
Colour
Clear and opaque
LT value (EN 14500/EN 410)
± 57% ± 32%
The proven
impact
of our innovative
solutions.

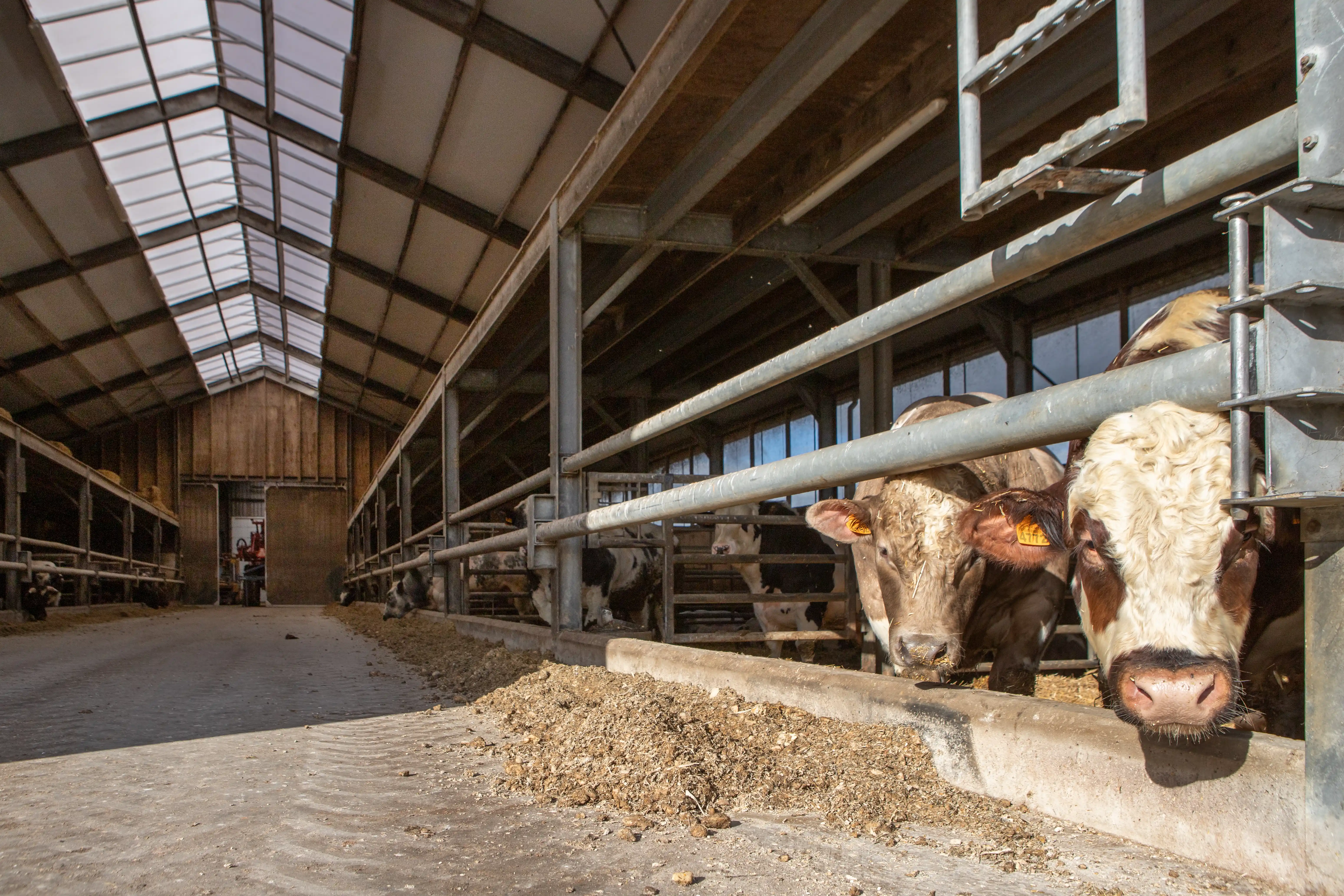

From innovative agricultural projects to specialised industrial environments: Light Panel is the partner of choice for projects where light quality and bespoke solutions are essential.de kwake
YOUR PROJECT NEEDS THE BEST PARTNER.
Do you have any specific requirements regarding U-values for thermal transmittance, dimensions or available colours? Our team of lighting experts are happy to work with you every step of the way, from the initial sketch to final acceptance.
